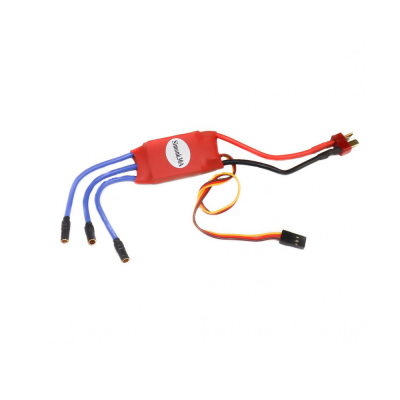

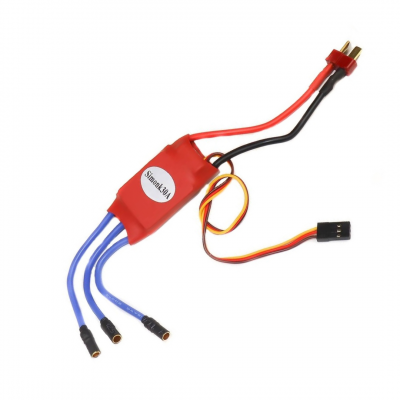

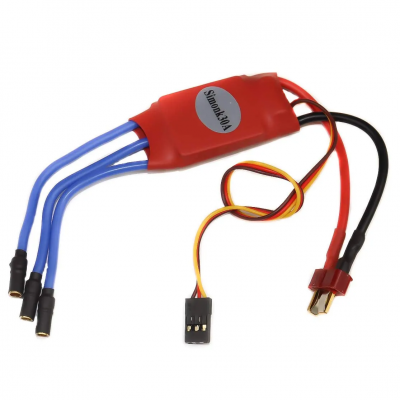

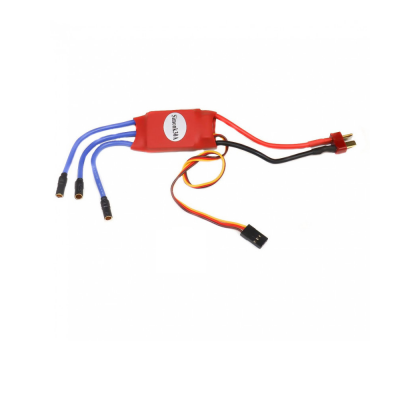

ESC-30A 30A ESC Simonk Electronic speed controller with Dean Connectors

ESC-30A 30A ESC Simonk Electronic speed controller with Dean Connectors
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-002771
  • Weight: 27.00g
  • SKU: BE-002771
  • MPN: BE-002771
Rs325.00
(GST +18%Extra)

Description

·        Simonk 30A Brushless Electronic Speed Controller ESC is specifically made for quadcopters and multi-rotors and provides faster and better motor speed control giving better flight performance compared to other available ESCs.

·        It can drive motors that consume up to 30A current. It works on 2S-3S LiPo batteries.

·        It has an onboard BEC which provides regulated 5V(2A max draw) to power the flight controller and other onboard modules.

·        This particular ESC is recommended with A2212 brushless motor (1000kv, 1400kv, 1800kv, 2200kv).

·        Warning: In case the BLDC ESC 30A SIMONK is connected directly to the remote control receiver; never ever switch off the remote control before switching off power to the BLDC ESC. Depending on the model of the remote control; it may result in full throttle applied to the motor and it will rotate at full speed.

Features:

·        High-quality MOSFETs for BLDC motor drive.

·        Backward-polarity protection and protection on the 5V receiver line.

·        High-performance microcontroller for best compatibility with all types of motors at greater efficiency.

·        Fully programmable with any standard RC remote control.

·        Heat sink with a high-performance heat transmission membrane for better thermal management.

·        3 start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircraft and helicopters.

·        The throttle range can be configured to be compatible with any remote control available in the market.
