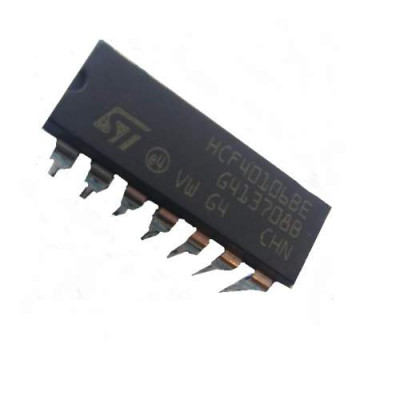

40106 Hex Inverting Schmitt Trigger

free shipping Order Above 499--**

Dispatch within 24 Hours*

7 Days Replacement Only

Description
Reviews

Category	Integrated Circuits (ICs)
Name	CD40106, Hex Inverter Schmitt Trigger
Family	CMOS
Series	4000
Mounting Type	Surface Mount
No. of Pins	14 (DIP)

Feature:

Hex Schmitt Trigger Circuit
High Noise Immunity
Wide Operating Voltage Range
Operating Temperature to 85oC
Low Power TTL

Tags: integrated circuit , 40106
