4020 14-Stage Binary Ripple Counter

Category Integrated Circuits (ICs)
Name CD4020, 14-Stage Binary/Ripple Counter
Family CMOS
Series 4000
Mounting Type Surface Mount
No. of Pins 16 (DIP)



  • 14-stage Ripple Carry Binary Counters
  • Counters Advance One Count on Negative Transition of Clock Pulse
  • Wide Operating Voltage Range
  • Operating Temperature to 85oC
  • Low Power TTL

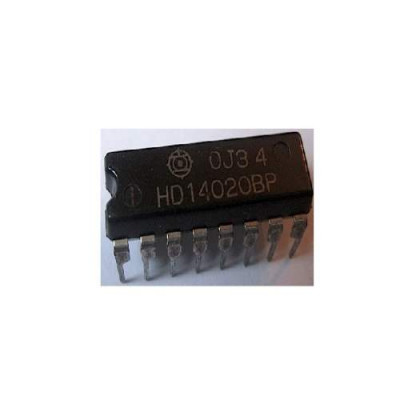

*Image shown is a representation only.
