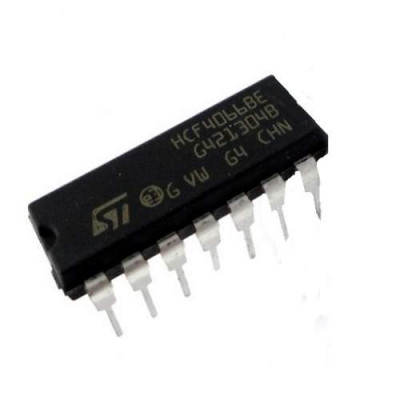

4066 HCF4066BE Quad Analog switch (Low "ON" Resistance)

4066 HCF4066BE Quad Analog switch (Low "ON" Resistance)
  • Stock: Out Of Stock
  • Brand: xcluma
  • Model: BE-000564
  • MPN: BE-000564
Rs16.00
(GST +18%Extra)

Specifications:

The 4066 is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with CD4016BC, but has a much lower "ON" resistance, and "ON" resistance is relatively constant over the input-signal range.

Features:

  • Wide supply voltage range 3V to 15V
  • High noise immunity 0.45VDD
  • Wide range of digital and ±7.5V Peak analog switching
  • "ON" resistance for 15V operation 80Ω
  • Matched "ON" resistance ΔR ON=5Ω over 15V signal input
  • "ON" resistance flat over peak-to-peak signal range
  • High "ON"/"OFF" 65dB (typ.) output voltage ratio
  • High degree linearity 0.1% distortion (typ.)
  • Extremely low "OFF" 0.1nA (typ.) switch leakage
  • Extremely high control input impedance
  • Low crosstalk -50dB (typ.) between switches
  • Frequency response, switch "ON" 40MHz (typ.)

    Applications:

  • Analog signal switching/multiplexing
  • Signal gating
  • Squelch control
  • Chopper
  • Modulator/Demodulator
  • Commutating switch
  • Digital signal switching/multiplexing
  • CMOS logic implementation
  • Analog-to-digital/digital-to-analog conversion
  • Digital control of frequency, impedance, phase, and analog-signal-gain
