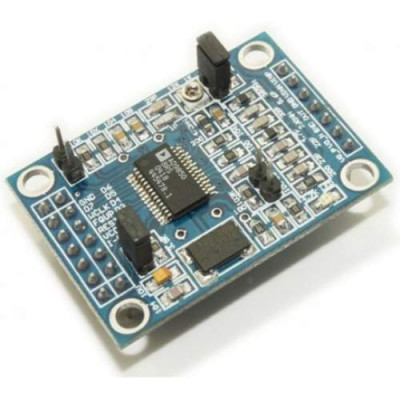

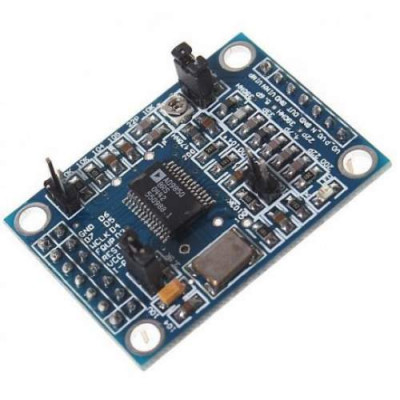

AD9850 DDS 0-40MHz Signal Generator Module 2 Sine Wave And 2 Square Wave Output

AD9850 DDS 0-40MHz Signal Generator Module 2 Sine Wave And 2 Square Wave Output
AD9850 DDS 0-40MHz Signal Generator Module 2 Sine Wave And 2 Square Wave Output
Out Of Stock
AD9850 DDS 0-40MHz Signal Generator Module 2 Sine Wave And 2 Square Wave Output
AD9850 DDS 0-40MHz Signal Generator Module 2 Sine Wave And 2 Square Wave Output
Thanks for Your Trust and Support!!!
Thanks for Your Trust and Support!!!
AD9850 DDS 0-40MHz Signal Generator Module 2 Sine Wave And 2 Square Wave Output
  • Stock: Out Of Stock
  • Brand: xcluma
  • Model: BE-000291
  • Weight: 6.00g
  • MPN: BE-000291
0 reviews - Write a review
Rs1,024.00
(GST +18%Extra)
Add to Cart
Direct Checkout Ask Question
Add to Wish List Compare this Product
free shipping Order Above 499--**
Dispatch within 24 Hours*
7 Days Replacement Only

DESCRIPTION:

  • 2 sine wave and 2 square wave output
  • AD9850 Frequency: 0-40MHz
  • After the 20-30MHz frequency harmonics increases, the waveform will become unclean.
  • Square Wave: 0-1MHz
  • Low-pass filter with 70MHz, so the waveform better than SN
  • Parallel and serial data input can be selected via a jumper
  • DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application
  • Comparator reference input voltage generated by the variable resistor, the resistor can be adjusted duty cycle square wave of different
  • Active AD9850 125MHz crystal oscillator modules
