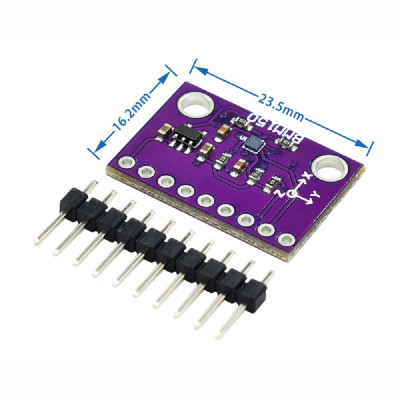

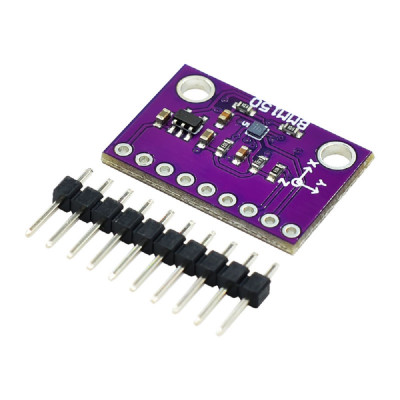

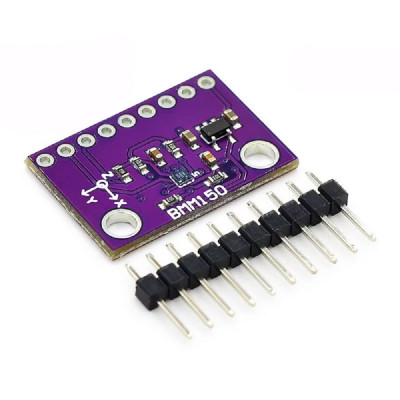

MCU-150 BMM150 Geomagnetic Sensor Magnetometer Compass Geomagnetic Sensor

BMM150 3-axis magnetometer sensor.
Suitable for compass and electronic compass applications
This is a digital compass sensor based on BMM150, supporting three-axis vertical magnetic field measurement, I2C/SPI interface, can be used for robot navigation positioning, electronic compass, magnetic heading equipment, etc.
Function list
Onboard BMM150 for measuring magnetic fields on three vertical axes
Supports I2C/SPI interface communication, the default is I2C interface, and the SPI can be switched by on-board resistance
Onboard voltage converter, compatible with 3.3V/5V levels
specification
Communication interface I2C/SPI (default is I2C bus)
Power supply 3.3V~5V
Magnetic measurement range 1300μt (X, Y axis), 2500μt (Z axis)
Solve 0.3μT
Operating temperature -40℃ ~ +85℃
Dimensions 29 x 20 mm
Supports I2C and SPI interface control
package Contains:1x xcluma MCU-150 BMM150 Geomagnetic Sensor Magnetometer Compass Geomagnetic Sensor
