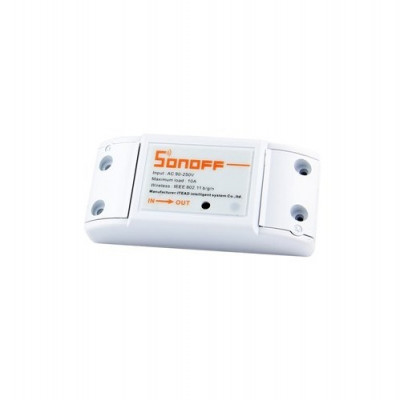

DIY Wi-Fi Wireless Switch For Smart Home With ABS Shell Socket Remote Control Switch Module

DIY Wi-Fi Wireless Switch For Smart Home With ABS Shell Socket Remote Control Switch Module
DIY Wi-Fi Wireless Switch For Smart Home With ABS Shell Socket Remote Control Switch Module
  • Stock: In Stock
  • Model: BE-001470
  • Weight: 220.00g
Rs1,154.00
(GST +18%Extra)

DESCRIPTION:

Sonoff and Slampher are smart WiFi Wireless products which will connect with your home appliances and lights by Wi-Fi, allowing you to remotely turn devices on or off, set timing schedules, check devices status through the APP in your smart phone.Slampher can connect to light bulbs with E27 screw base while Sonoff can connect to various home appliances.

Sonoff and Slampher’s most significant difference from general smart home products is the 433mHz Remote Controller. You can control many devices through ONE such a controller indoor, neither smart phones nor WiFi network needed.

How do Sonoff and Slampher work?

d0112c9a-a6ec-37c6-afb5-0316491743cc
Sonoff and Slampher will send data to cloud platform through Wi-Fi Router, they pair with the Wi-Fi through the APP, thus you can control all added appliances and lights with your smart phone or tablet. The 433 MHz receiver inside Sonoff and Slampher supports 433 MHz devices indoor control.

3caeadd0-d2a7-5dc0-4a23-46efdaad0baa

APP Remote Control
6802deb5-9756-442e-68eb-c94066d6985c
As long as the phone has network(2G/3G/WiFi), you can remotely control all your devices. The APP supports
  - Checking all devices status
- Remotely turn on or off the devices
- Setting maximum 8 timing schedules

How to operate the APP?
- Register and log in
- Add devices(auto-search devices to be configured —select the device to be added—select the wifi to be paired with—configure)
- Control devices(remote turn on/off, set timing schedules, check status, share devices)

2 Ways to control Sonoff and Slampher
You can control your Sonoff and Slampher by 2 ways: by the manual switch, by the APP. No matter which way you use, the status are synchronous.



How to install Sonoff and Slampher?
ee75cec4-f85c-332d-5761-57c67cfffc6e
To install Slampher, simply switch off the electricity source, screw the light bulb of E27 screw base into Slampher, then screw the Slampher into your original E27 screw light holder.
e59a8d06-35df-46cb-6c30-443b43bd04ea
To install Sonoff, pay attention to the IN and Out mark on Sonoff. 1. Switch off electricity source
2. Open the two yellow shells at both ends
3. Connect the two electricity source cables(Live and Neutral) to the 2 ports with “IN” mark, one cable for one port, and there’s no limitation for which port to connect.
4. Connect the two appliance cables(Live and Neutral) to the 2 ports with “OUT” mark, one cable for one port, and there’s no limitation for which port to connect
5. Cover the shells and screw firmly

82d7d5bd-b782-4140-6dda-1660218bd9c0



Power: <=0.5W
Rate Voltage: 100-260V
Power Adapter: Without Power Adapter
Other Features: Control mode: Mobile APP;
Transmission mode: Wi-Fi communication;
Controlled lines: 1;
Control distance: infinity;
Power: 7A/1500W;
Platform: Android, iOS;
Working temperature: 0-55 degree
