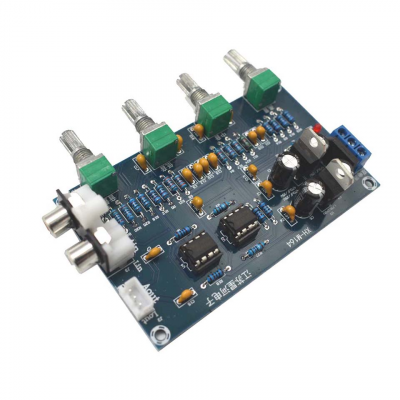

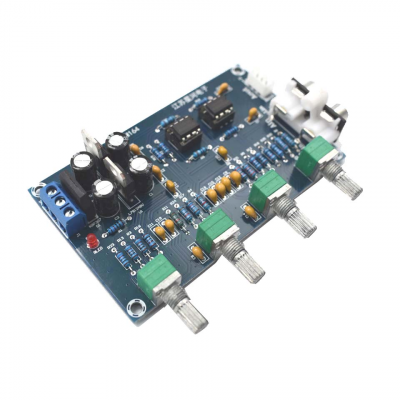

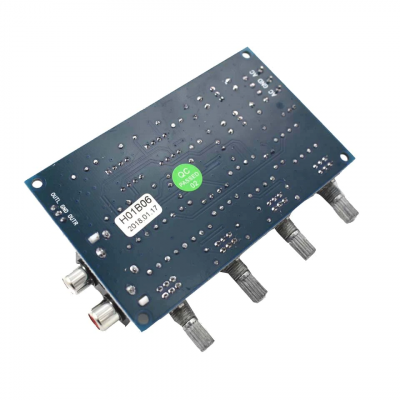

XH-M164 Texas AUDIO pitch NE5532 music mixer bass treble adjustment amplifer board

The general transformer has dual 12V front power supply and dual 24V post power supply at least 2 groups of output. The double 12V for tone board. The main winding with double 24V or more after the stage.

 With Texas NE5532 operational amplifier.

 For the amplifier board preamplifier to amplify the pre-level volume and can do high and low bass adjustment, to optimize the sound quality.

③ Sealed dustproof potentiometer.

 Wide voltage supply.

Specifications:

Supply voltage: AC double 12V±2V

Power consumption: 5W

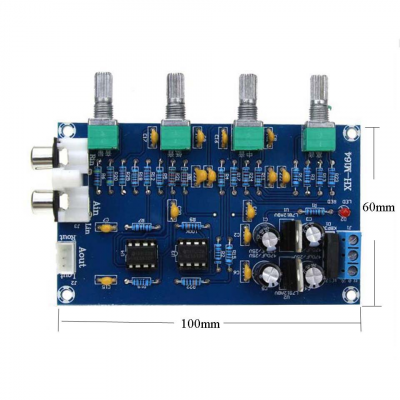

Dimensions: 100*60mm (not including knob protruding part)

Mounting hole distance: K=M3    J=53X93

Pre-chip: NE5532

Input interface: standard lotus socket

Output interface: 2.54-3P

Number of channels: two channels

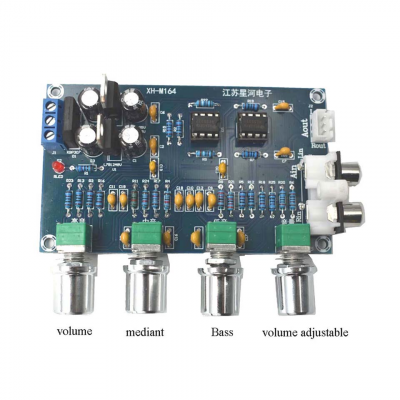

Adjustment type: 4 channels (treble+middle+bass+total volume)



Package Included:

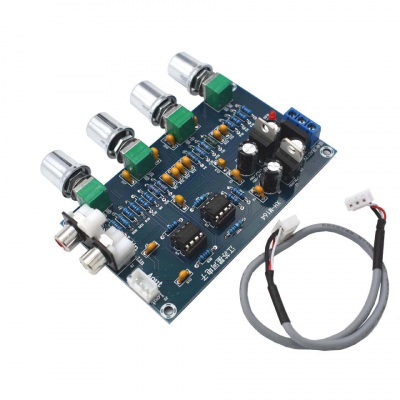

1 × Assembly adjustment amp board
