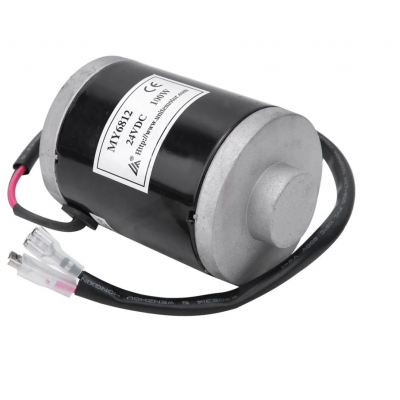

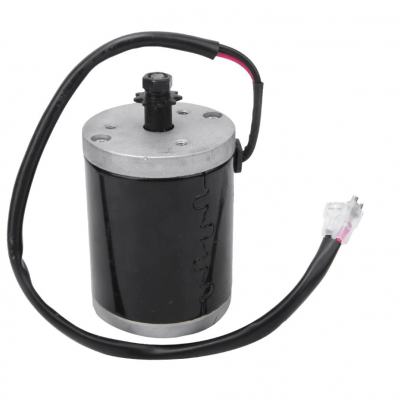

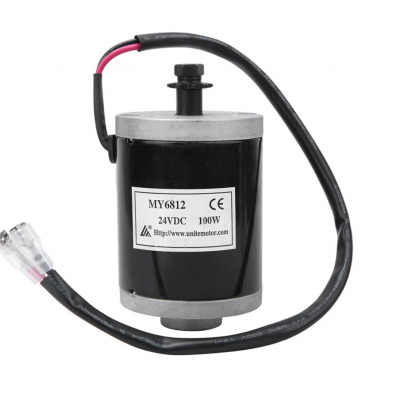

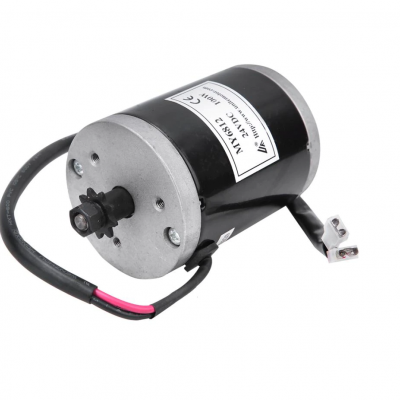

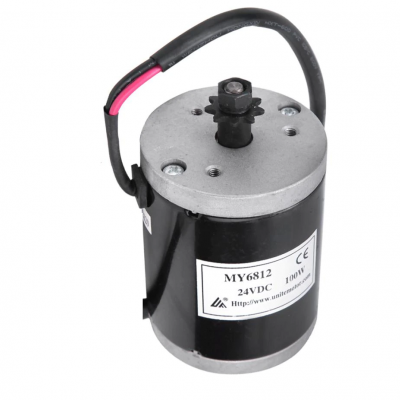

MY6812 24V 100W High Speed Small Brush Motor with Belt Pulley for E Bike e-bike
1. This product is a small brush motor, made of premium aluminum material.
2. With metal belt pulley, strong, durable for long time use.

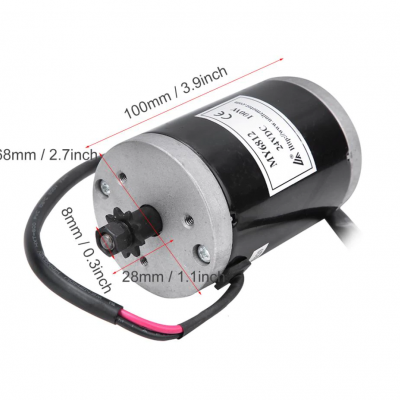

3. The motor length of 100mm is 68mm in diameter, the shaft length is 28mm, the shaft diameter is 8mm, the distance between the 2 fixed holes of the motor is 36mm, and the sprocket wheel is the 9 teeth sprocket wheel of the 25H model.
4. The shaft diameter: 8mm (single milling slot 1mm).
5. Suitable for electric scooter, electric bicycle, etc.
Condition: 100% Brand New
Item Type: Brushed Motor
Color: as picture shown
Rated power: 100W (kW)
Rated voltage: 24 (V)
Main application: scooter, electric vehicle
Rated voltage range of 3C: below 36V DC
Rated current: <8, 5A
Rated speed (RPM): 2500±5%
Maximum speed (RPM): 3500±5%
No-load current: < 0.9A
Rated torque: 0.56 nm
Transmission: belt pulley, metal
Shaft diameter: 8mm (single milling slot 1mm)
Efficiency: > 68%
Motor length: 100mm/3.9inch
Motor diameter: 68mm/2.7inch
Shaft length: 28mm/1.1inch
Shaft diameter: 8mm/0.3inch
Motor fixed holes distance: 36mm/1.4inch
Sprocket: 25H 9 teeth sprocket
2800 RPM 6.0 amperes rated current 0.35 N.m
For: mini scooters or DIY
Package List:1 x Brushed Motor
