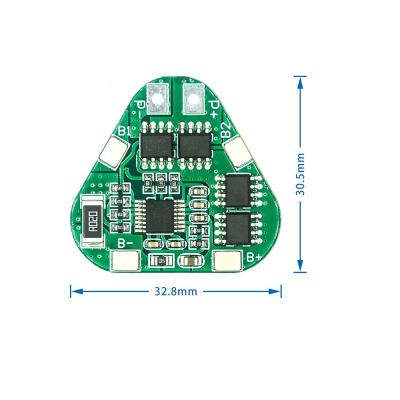

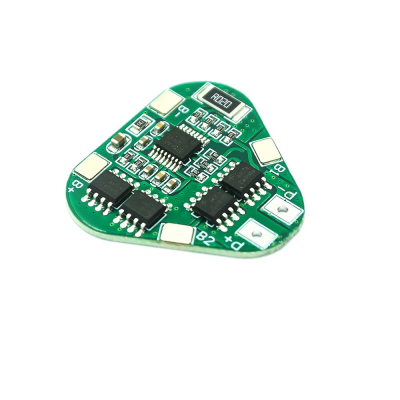

3S 3 series 12V 18650 lithium battery protection board 11.1V 12.6V overcharge and overdischarge protection working current 8A

3S 3 series 12V 18650 lithium battery protection board 11.1V 12.6V overcharge and overdischarge protection working current 8A
3S 3 series 12V 18650 lithium battery protection board 11.1V 12.6V overcharge and overdischarge protection working current 8A
3S 3 series 12V 18650 lithium battery protection board 11.1V 12.6V overcharge and overdischarge protection working current 8A
3S 3 series 12V 18650 lithium battery protection board 11.1V 12.6V overcharge and overdischarge protection working current 8A
3S 3 series 12V 18650 lithium battery protection board 11.1V 12.6V overcharge and overdischarge protection working current 8A
3S 3 series 12V 18650 lithium battery protection board 11.1V 12.6V overcharge and overdischarge protection working current 8A
3S 3 series 12V 18650 lithium battery protection board 11.1V 12.6V overcharge and overdischarge protection working current 8A
  • Stock: In Stock
  • Model: BE-002468
  • SKU: BE-002468
Rs253.00
(GST +18%Extra)
Description
  • Upper limit operating current: 8A Upper limit instantaneous current: 12A
  • Overcharge voltage range: 4.25±0.05v Over discharge voltage range 2. 5v ±0. 05v
  • Charging voltage: 12. 6V-13V Quiescent current: small \T30uA
  • Short circuit protection: can protect, delay self-recovery
  • Note: For products with a current above 3A, the battery discharge rate must be above 3C.
  • The magnification calculation formula: for a battery with a 1C magnification, the capacity of 2000 is equal to 2AH*1=2A working current.
  • 3C rate battery, 2000 capacity is equal to 2AH*3=6A working current.
  • In use, the battery will heat up, which means that the battery rate is not applicable. In this case, the battery cannot be used for a long time, and the battery will be damaged quickly.

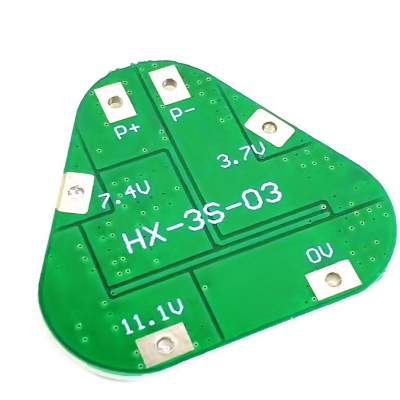

  • Note 1: Wiring OV (B-), 3.7V (Bl), 7.4V (B2), 11.1V (B+) strictly according to the diagram, do not short-circuit intentionally
  • Note 2: After the line is connected, it needs to be charged before output.
  • Note 3: When connecting three sets of batteries in series, please ensure that the voltage of each set of batteries is the same. If they are not the same, please charge each set of batteries separately and use them in series.
  • During the discharge test, the battery with the fast voltage drop is a bad battery.
  • Explain: Don't mix good batteries and bad batteries together! The closer the capacity/internal resistance of the 3 sets of batteries, the better
  • (2 good batteries + 1 poor battery use effect = 3 poor batteries use effect)
