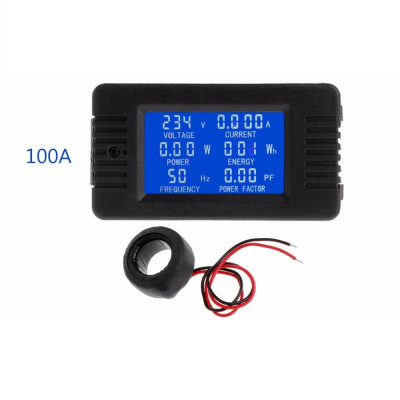

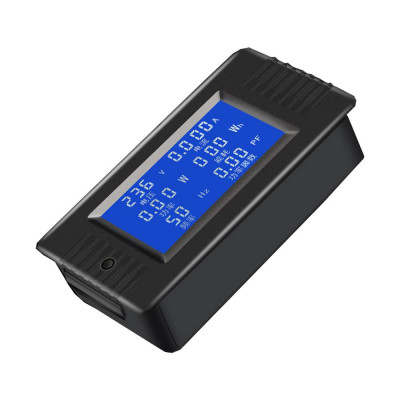

PZEM-020 AC 100A Digital Ammeter With Split CT Multifunction Power Energy Voltage Current Tester

Features

·         Working voltage: 80~260VAC

·         Test voltage: 80~260VAC

·         Rated power: 10A/2300W

·         Operating frequency: 45-65Hz

·         Measurement accuracy: 1.0 grade

Description

·         Electrical parameter measurement function: voltage, current, active power, energy, frequency, power factor

·         Overload alarm function: over power alarm threshold, backlight and power flashing to alarm

·         Power alarm threshold present function: can set power alarm threshold

·         The energy can be reset use the key

·         Store data when power off

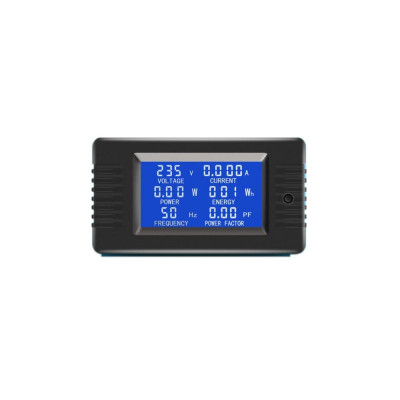

·         Large-screen LCD, it can display six parameters at the same time

·         Backlight function

·         8.Key Function

·         Backlight control

·         Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off.
Reset energy
• Step1: Long press the key for 5 seconds until the energy value flash, then release the key.
• Step2: Short press the key again, then the energy value is cleared and exit the reset flashing state.
• Step3: If there is no operation on the key within 5 seconds, it means the energy value is not cleared and will exit the reset state.
Set power alarm threshold

• Step1: Long press the key until the LCD screen display “SET Clr”, then release the key to enter the setting state
• Step2: Power window display the current power alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operating over 3 seconds, it will switch the digit position automatically, the setting method is as same as the above.
• Step3: After finish the setting, long press the key over 5 seconds will store automatically and exit, the range of active power threshold is 0.0~2.5kW.
