1200W high power DC-DC boost constant voltage constant current adjustable car charging power module Input DC10-60V output 12-83V

1200W high power DC-DC boost constant voltage constant current adjustable car charging power module Input DC10-60V output 12-83V
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-002360
  • Weight: 259.00g
  • SKU: BE-002360
  • MPN: BE-002360
Rs775.00
(GST +18%Extra)

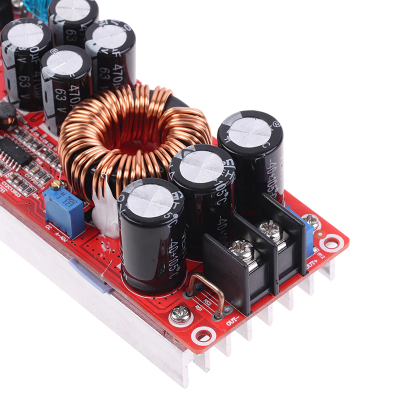

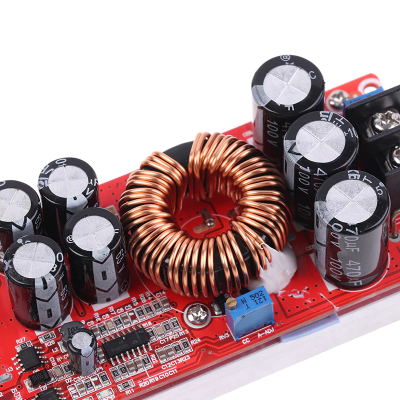

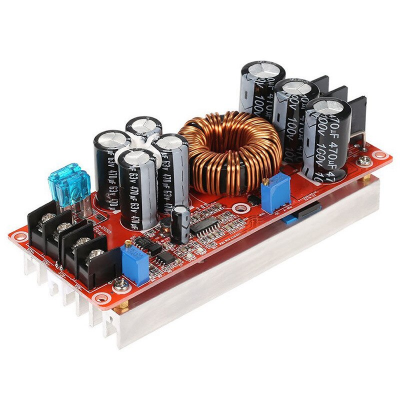

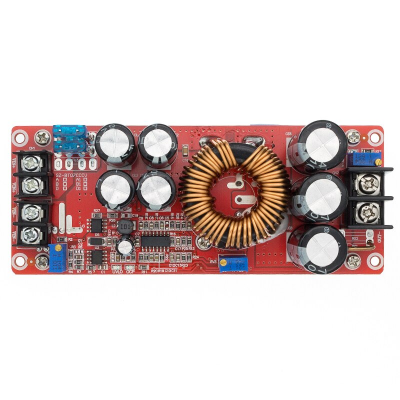

1200W high power DC-DC boost constant voltage constant current adjustable car charging power module Input DC10-60V output 12-83V

Module parameters:

Module model: SZ-BT07CCCV-A

Module name:1200W boost constant current module

Module properties:

Non-isolated boost module (BOOST)

Input voltage: DC10-60V (direct input 10-60V without jumper cap to select voltage)(Updated 2016/5/15)

Input current:2If 0A(MAX) exceeds 15A, add a fan for cooling.(When the input voltage of fan cooling is 12-24V, the input current can reach 25A)

Static work current:15mA(12V to 20V, the higher the output voltage, the higher the static current will increase)

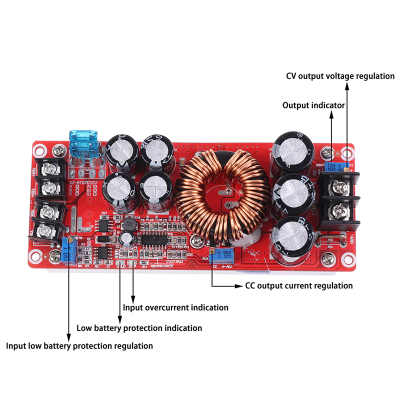

Output voltage:12-83v continuously adjustable (the default output is adjusted to 19V for shipment. If you need to adjust to other voltage values, please explain. If there is a multimeter, buyers can adjust it by themselves)

12-83v fixed output (for batch customers)

Output current:18A MAX exceeds 10, please strengthen heat dissipation (related to input and output differential pressure, the larger the differential pressure, the smaller the output current)

Constant current range:0.5-18A(+/-0.3A)

Enter anti-reverse connection: Yes(150A power MOS anti-reverse)

Low battery protection: Yes(9-50V adjustable)

Operating temperature:-40~85 degrees (please strengthen heat dissipation when the ambient temperature is too high)

Working frequency: 150KHz

Conversion efficiency:92%-97%(Efficiency is related to input, output voltage, current and differential pressure. The differential pressure is small and the efficiency is high)

Input overcurrent protection: Yes (input exceeds 25A, automatic protection, power supply does not boost)

Short circuit protection: Yes (input 30A Fuse)Double short circuit protection for safer use.

Input reverse connection protection: Yes (150A power MOS tube anti-reverse. Can be reversed for a long time)

Installation method:43mm copper cylinder

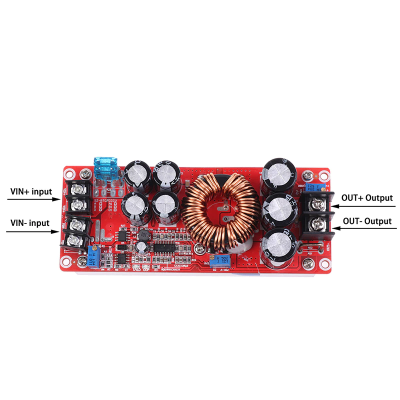

Wiring method: Wiring terminal(Please use high current Cooper wires)

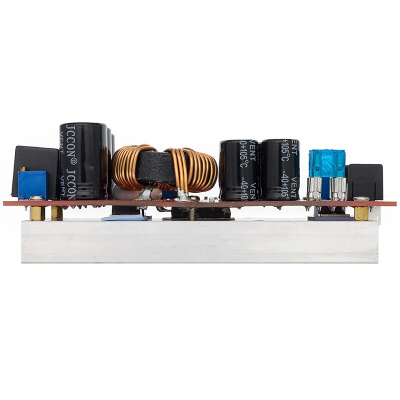

Module size: Length 130mm width 52mm height 53mm

Module piece weight:300g

Output power:=Input voltage * 20A, for example: input 12V * 20A = 240W input 12V maximum power is 240W

Input voltage * 20A for example: input 24V * 20A = 480W, that is, the maximum power is 480W when input 24V

Note: The maximum power is 240W when input 12V, 480W when input 24V, 720W when input 36V
