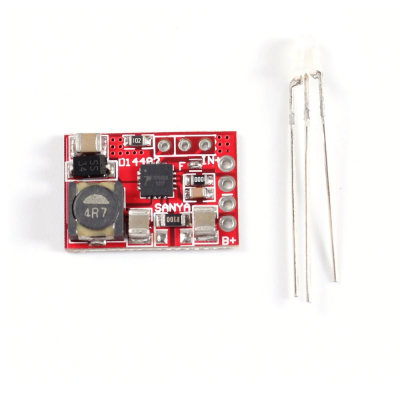

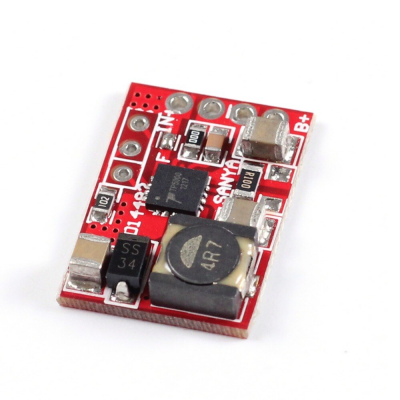

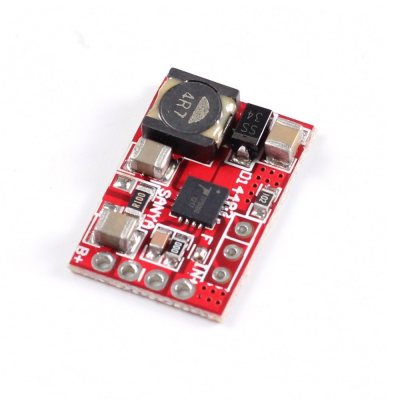

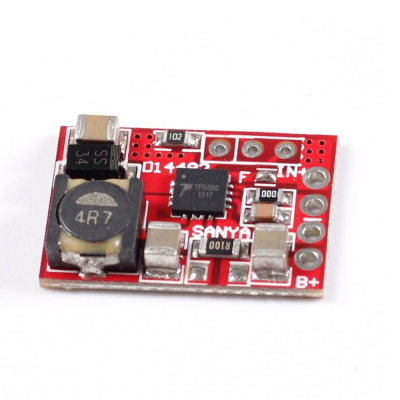

TP5000 Lithium Battery Charger Module 4.5-9V to 4.2V/3.6V 1A Charging Rechargeable Board

Features

• Input Voltage Range: DC 4.5V – 9V ( Recommended Input voltage should not exceed 7V)
• Output Voltage: 4.2V/3.6V (Changeable)
• Default Output Voltage: 4.2V (For Lithium Ion Battery)
• Can charge Lithium Ion Battery (4.2V) as well as Lithium Phosphate battery (3.6V)
• Output Current: 1A (Default, Changeable)
• LED Indicator: RED indicates charging ON, GREEN indicates charging complete
• F Solder pad connected: 3.6V Lithium Phosphate Battery Charging Mode
• F Solder pad unconnected: 4.2V Lithium Ion Battery Charging Mode

Description

• The TP5000 Battery Charging Module with support for Lithium Ion and Lithium Phosphate Batteries, and works with 3.6V as well as 4.2V Battery, the default current charging on this module is 1A
• RED led indicates that the battery is charging, and green indicates the the battery is fully charged.
• The efficiency is higher than the linear charging circuit and heat is also much smaller. In the constant current full charge to maintain 1A. With over heating , overheating will automatically reduce the current to prevent burnout ,No additional heat dissipation and reducing the impact of heat on the charging current
• To charge, the lithium ion phosphate battery, one should connect the solder pads with F label.

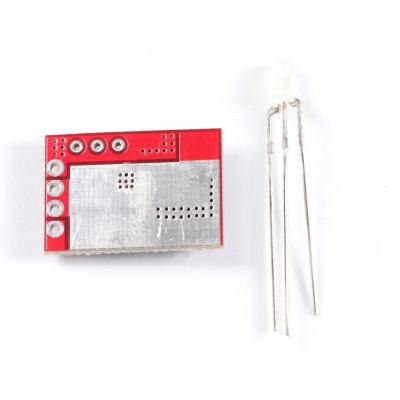

• The TP5000 Battery Charging Module has a switching regulator integrated, which reduces the heat produced as compared to linear regulators. It also has a blank pad on the bottom side to dissipate the heat, the user can fix heat sink there, in case of output current needed is more than 1A.
