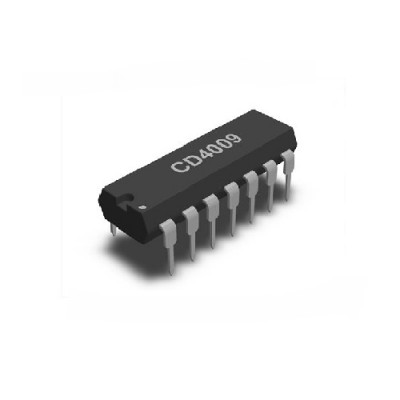

CD4009 Hex Buffer

free shipping Order Above 499--**

Dispatch within 24 Hours*

7 Days Replacement Only

Description
Reviews

Category	Integrated Circuits (ICs)
Name	CD4009
Series	4000
Mounting Type	Surface Mount
No. of Pins	16 (DIP)

Features:

Six Independent Buffers in a Single Package
Inverting Type
High Voltage Type
5V, 10V and 15V Parametric Rating
Low Power TTL

Tags: integrated circuit , cd4009 , 4009 ,
