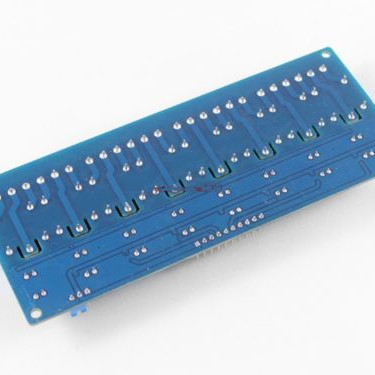

8 CHANNEL 5V RELAY BOARD EXPANSION MODULE OPTOCOUPLER ARDUINO RASPBERRY
Product description:


This relay module is 5V active low.

It is an 8-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc.

It is also able to control various appliances and other equipments with large current.

Relay output maximum contact is AC250V 10A and DC30V 10A.

Standard interface can be directly connected with microcontrollers.

Red working status indicator lights are conducive to the safe use.

Widely used for all MCU control, industrial sector, PLC control, smart home control.

Input port IN1, IN2, IN3, IN4, IN5, IN6, IN7, IN8 low signal level effectively.

VCC, GND: Input power.

JD - VCC: Relay power input port,relay can power alone.

Working voltage: 5V

Module weight: about 112g

package weight: about 120g

module size: about 1.7cm * 5.5cm * 13.7cm(height * width * long)



Applications:



(1).Support all single-chip microcomputer control.

(2).Industrial fields;

(3).PLC control;

(4).Household intelligent control


Package:
1 x (8-Channel 5V Relay Shield Module Board Optocoupler module Arduino ARM PIC AVR
