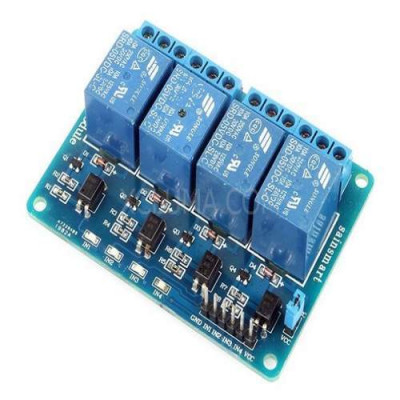

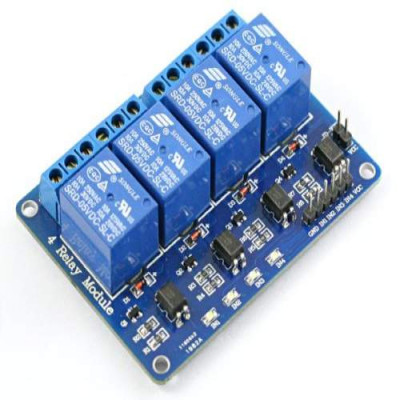

4 CHANNEL 5V RELAY BOARD MODULE RELAY EXPANSION BOARD FOR ARDUINO RASPBERRY

DESCRIPTION:

  • SIZE :   54MM * 75MM

  • This is a 5V 4-Channel Relay interface board,Be able to control various appliances, and other equipments with large current.It can be controlled directly by Microcontroller(Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) .

  • 5V 4-Channel Relay interface board, and each one needs 15-20mA Driver

    Current

  • Equiped with high-current relay, AC250V 10A ; DC30V 10A the 8550 transistor drive, drive ability

  • Working voltage 5 V

  • Has the fixed bolt hole and easy installation

  • Small board PCB size: 7.2 cm * 4.8 cm

  • Power indicator (green), Two ways of relay status indicator light (red)

  • Weight : ~60 g

  • Module interface specifications (6 wire):

  1. VCC external 5 V
  2. GND external GND
  3. 1N1-1N2 interchange relay control interface by single chip IO
  • Standard interface that can be controlled directly by microcontroller
  • ( AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
  • Indication LED's for Relay output status
  • Supports all MCU control

  • The industrial field

  • PLC control

  • Smart home control

  • Size: 7.5*5.6*1.8cm/2.95*2.2*0.7"

  • Quantity:1pc

Write a review

Please login or register to review

4 CHANNEL 5V RELAY BOARD MODULE RELAY EXPANSION BOARD FOR ARDUINO RASPBERRY

  • Views: 1434
  • Product Code: BE-000035
  • Availability: In Stock
  • Rs200.00
  • Excluding Tax: Rs169.49

Tags: interface board, four channel, 4 chn, channel, relay, board,
