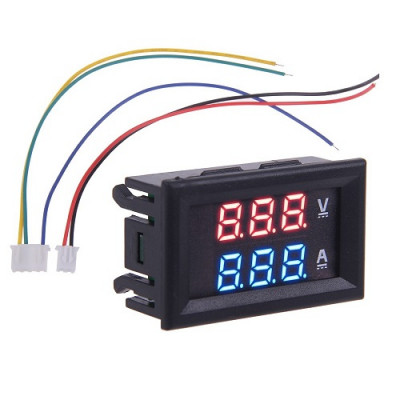

Dc 100V 100A Voltmeter Ammeter Led Amp Volt Current Meter With External Shunt
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-000339
  • Weight: 150.00g
  • MPN: BE-000339
1 reviews - Write a review
Rs488.00
(GST +18%Extra)
Add to Cart
Direct Checkout Ask Question
Add to Wish List Compare this Product
free shipping Order Above 499--**
Dispatch within 24 Hours*
7 Days Replacement Only

FEATURES:

  • Operating voltage:DC 4.5 ~ 30V
  • Measure voltage: DC 0 ~ 100V
  • Minimum resolution(V): 0.1V
  • Measure current :100A (require external shunt)  DC 100A/75mV Shunt - included
  • Minimum resolution(A): 0.1A
  • Operating current: <20mA
  • Display: three 0.28" LED digital tube
  • Display color: Red and Blue (two-color display)
  • Dimensions: 48 x 29 x 21mm
  • Mounting cutout: 45.5 x 26.5mm
  • Refresh rate: about 500mS / times
  • Measure accuracy: 1% (± 1 digit)
  • Operating temperature: -10 to 65° c
  • Operating Humidity: 10 to 80% (non-condensing)
  • Working pressure: 80 to 106 kPa
  • Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement
