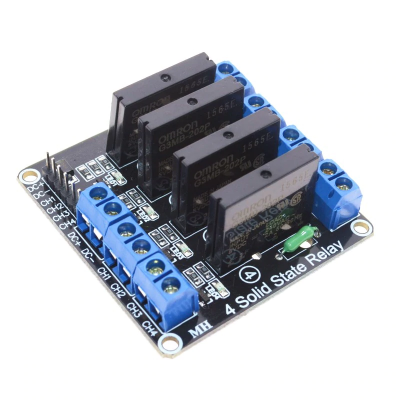

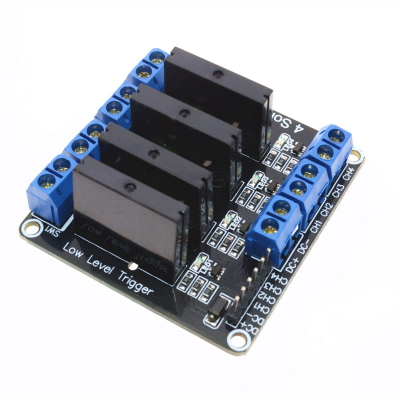

5V 4 Channel OMRON SSR Low Level Solid State Relay Module

5V 4 Channel OMRON SSR Low Level Solid State Relay Module
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-001936
  • Weight: 37.00g
  • SKU: BE-001936
  • MPN: BE-001936
Rs425.00
(GST +18%Extra)
  • OMRON 5V 240V solid state relay 2A,
  • output with resistance type fuse 240V 2A.
  • size: 57*55*25 3 the input power supply: 5V DC (160MA)
  •  the input control signal voltage: (0-2.5V the state of low level relay ON)
  • (3.3-5V high level relay OFF)
  • the 2.54CM pin and blue KF301 terminal is connected to the line of control more convenient.
  • Input part: DC+: connect the power supply positive (press the relay voltage power supply) DC-: the cathode of a power supply
  • CH1: 1 relay module signal trigger end (Low level trigger effective)
  • CH2: 2 relay module signal trigger end (Low level trigger effective)
  • CH3: 3 relay module signal trigger end (Low level trigger effective)
  • CH4: 4 relay module signal trigger end (Low level trigger effective)
  •  input control signal voltage: (0-2.5V the state of low level relay ON) (3.3-5V high level relay OFF)
